How to Wake a Computer in Sleep Mode or Powered Off Using Wake On LAN
When all requirements are met, you will be able to use Wake On LAN to switch on a computer that is in sleep mode (PC and Mac) or powered off (PC).
Minimum Requirements
- The computer you are trying to wake up must be on a wired connection (not on WiFi)
- A second Host computer must be switched on and in the same network in order to send the wake request
Wake On LAN for a Windows PC
How to enable Wake On LAN on a Windows PC.
- Make sure Wake On LAN is enabled in the BIOS of the computer you want to wake up. Consult the user guide of your computer or motherboard to locate the appropriate BIOS switch, usually Wake On LAN from S5.
- Open the LogMeIn Control Panel and navigate to . Under Wake On LAN, select Enable 'Wake On LAN' from sleep and power off. Can't access this feature? If the host was installed by an administrator or via an Installation Link from Central, your administrator may have restricted your access to this feature. Contact your administrator for more information.

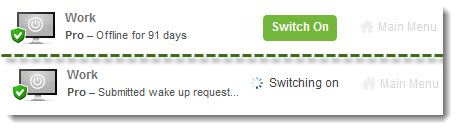

Any computer that is ready for Wake On LAN shows the Switch On button next to the computer. Click the button to wake the computer. It may take several minutes for the computer to wake.
Wake On LAN in the browser
Wake On LAN on a phone or tablet
Still Not Working? See Troubleshooting Wake On LAN on a Windows PC.
Wake On LAN for a Mac
How to enable Wake On LAN on a Mac.
- On the computer you want to wake up, under
- Can't access this feature? If your Mac is part of a domain or a network, your domain administrator may have restricted some of the features and settings available on your MAC. Contact your administrator for more information.
, enable Wake for Network Access .
- Open the LogMeIn Control Panel and navigate to . Under Wake On LAN, select Enable 'Wake On LAN' from sleep and power off.
Any computer that is ready for Wake On LAN shows the Switch On button next to the computer. Click the button to wake the computer. It may take several minutes for the computer to wake.
Wake On LAN in the browser
Wake On LAN on a phone or tablet
Still Not Working? See Troubleshooting Wake On LAN on a Mac.
Troubleshooting Wake On LAN on a Windows PC
Here are some steps you can take to troubleshoot issues when trying to wake a PC.
Minimum Requirements
- The computer you are trying to wake up must be on a wired connection (not on WiFi)
- A second Host computer must be switched on and in the same network in order to send the wake request
Hardware Requirements
- Motherboard Chipset
- Network Adapter (if you have recently updated to Windows 10, make sure the Network Adapter drivers are updated)
- BIOS
Tip: In the BIOS under Power Management, Deep Sleep must be turned off.
Consult your computer or hardware manufacturer for assistance in downloading and installing drivers and firmware.
Enabling Wake On LAN on Windows 10
Further Resources and Information
- S0 – System is fully powered on
- S1 – Power on Suspend(POS): Power to the CPU and RAM is maintained.
- S2 – CPU powered off.
- S3 – Standby, Sleep or Suspend: RAM still has power
- S4 – Hibernation: Memory is saved to the hard drive and the system is powered down.
- S5 – Shut Down: The power supply still supplies power to the power button.
For additional information, visit the Microsoft support site.
Troubleshooting Wake On LAN on a Mac
Here are some steps you can take to troubleshoot issues when trying to wake a Mac.
Minimum Requirements
- The computer you are trying to wake up must be on a wired connection (not on WiFi)
- A second Host computer must be switched on and in the same network in order to send the wake request
Hardware Requirements
First, confirm that you meet the hardware requirements for using Wake on LAN:
- Confirm that the computer is on a wired network (not WiFi). Wake On LAN is not supported for Mac hosts on a wireless network.
- Make sure the host is in Stand-by, sleep, or hibernation (ACPI specification S3 or S4) mode.
- You cannot wake a Mac that is powered off.
Adjust the Power Management settings in a System Configuration file
Check the Power Management settings on the Mac you want to wake up.
Adjust the Power Management settings in Terminal
Further Resources and Information
Make sure the host is in Stand-by, sleep, or hibernation (ACPI specification S3 or S4). You cannot wake a Mac that is powered off.
- S0 – System is fully powered on
- S1 – Power on Suspend(POS): Power to the CPU and RAM is maintained.
- S2 – CPU powered off.
- S3 – Standby, Sleep or Suspend: RAM still has power
- S4 – Hibernation: Memory is saved to the hard drive and the system is powered down.
- S5 – Shut Down: The power supply still supplies power to the power button.
For additional information, visit the Apple support site.
Can I test my computer for Wake On LAN compatibility?
Only perform these steps if you are comfortable working with the command line interface.
- Download the zip file woltest.zip
- From the zip file, save woltest.exe to the computer you want to wake. The computer cannot be asleep when you do this.
- On the computer you want to wake, open a command prompt and go to the directory to which you unzipped woltest.exe.
- Enter the command woltest -info and press Enter.
- Review the resulting data and take note of the MAC address,Local IP, and subnet mask.
- Place the computer you want to wake into sleep mode.
- Move to any other Windows PC on your LAN and repeat steps 1-2 above.
- Open a command prompt and go to the directory to which you unzipped woltest.exe.
- Using the information you took note of in step 5, enter the following command: woltest -wake -mac [MAC address for interface] -ip [Local IP address on interface] -subnet [Local subnet mask on interface] and press Enter.
Example: woltest -wake -mac 00:0c:20:1c:51:29 -ip 192.168.1.142 -subnet 255.255.255.0
This should wake up the sleeping computer. If not, your system may not be compatible with Wake On LAN.
